Description
Features and advantages of LY-5000 cover beam skeleton welding robot
1. Original gantry structure; reasonable mechanical structure, stable performance and easy maintenance;
2. Double welding torch design; doubled the processing efficiency;
3. Two sets of four-piece shaped template design; effectively ensure welding accuracy and realize the machine's non-stop circular processing mode; once again doubled the processing efficiency.
No. Welding Robot for Cover Beam Rebar Frame Sheet (Gantry Type) Remarks
1 Model LY-5000-16/ LY-5000-30 can be customized
2 The number of main body axis 4 axis Double Y axis
3 Control system 4-axis welding robot system Visual education programming
4 Welding platform effective width 4500mm can be customized
5 Effective length of welding platform 14000mm /280000mm can be customized
6 Two protection welding machine NB500*2 robot special welding machine
7 Welding wire diameter 0.8mm-1.6mm, standard 1.2mm welding wire
8 Total power 30KW including welding machine
9 Overall dimensions 16000-30000mm*5600mm*1500mm, length varies randomly
10 Power supply 50Hz 380V three-phase five-wire
11 Total mass 18-25T random change in weight
10 Power supply 50Hz 380V

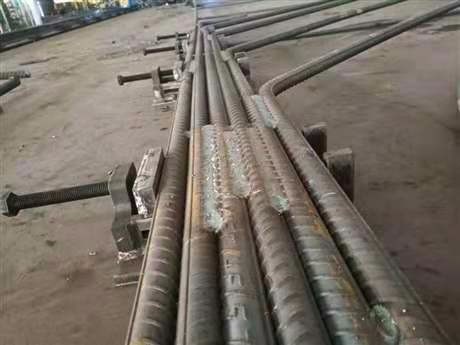

LY-5000 welding robot for cover beam steel frame
Equipment configuration table
Serial number Item name Quantity Remarks
1 Robot body (5000 type) 1 unit assembled together
2 Control cabinet assembly 1 set
3 Second protection welding machine for robot 2 sets
4 Control power cord drag chain 1 set with air pipe
5 Precise guide rail 16-30 meters, the length varies randomly
6 Welding platform (including platform steel plate) 14-28 meters, random change in length
7 100 sets of welding jigs, purchase the excess
8 tool box 1
