Description

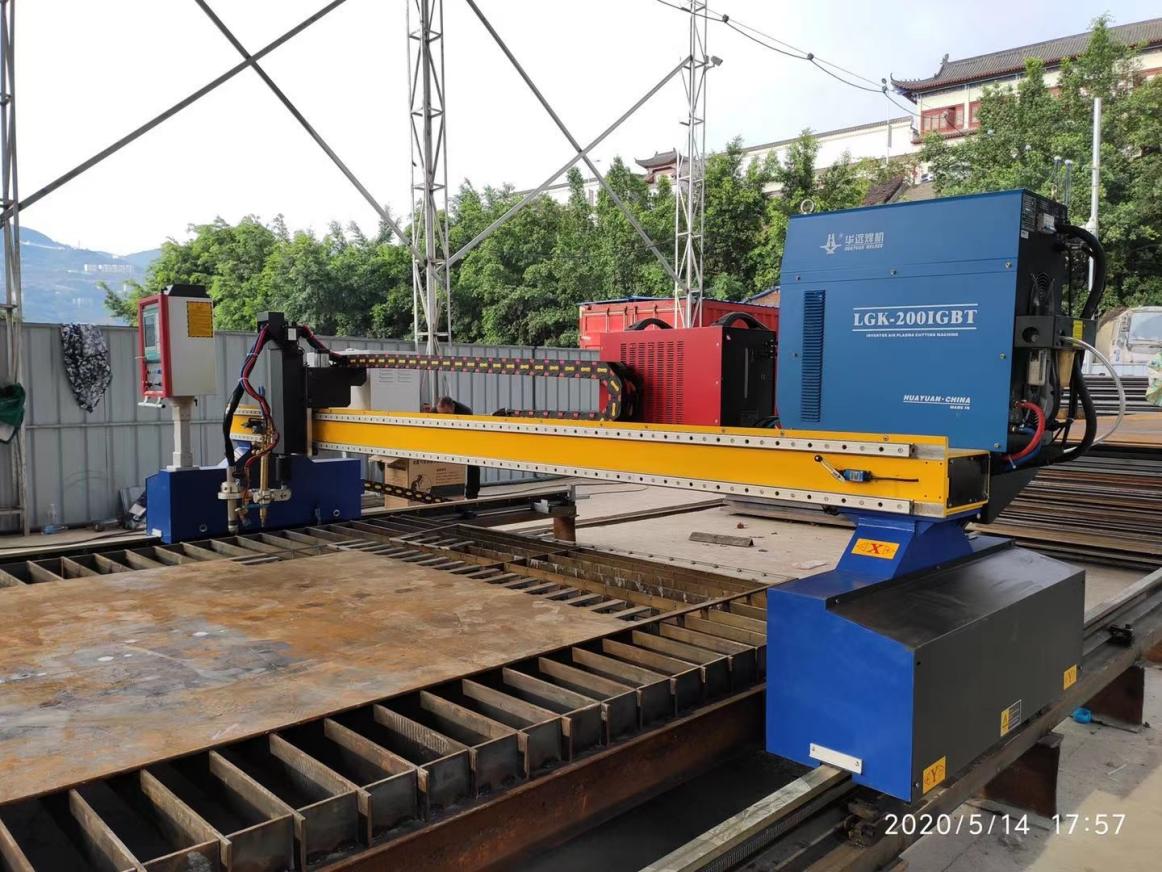

1、 Gantry CNC flame plasma dual-purpose cutting machine
2、 Product configuration requirements:
（1） Product Overview:
The LY series CNC flame plasma cutting machine is a high-efficiency steel plate automatic cutting and cutting equipment developed by our company to support the processing of metal structural components, absorbing advanced software and hardware technology from home and abroad. It can cut vertically and horizontally in straight lines, as well as in any direction of arc curves. The cutting surface roughness and accuracy are high, and the deformation is small. This machine has the advantages of reasonable structure, simple operation, and advanced technology.
The components of LY series cutting machines include CNC system, drive system, control system, mechanical system, and pneumatic system. This machine is mainly used for flame plasma cutting of various shapes of metal sheet surfaces. It has complete functions, high degree of automation, advanced configuration, high cutting accuracy, good quality, and good dynamic stability. The CNC system and servo system adopt well-known domestic and foreign brands with excellent performance products, convenient human-machine interface, friendly operation, rich software and high-quality hardware configuration, and comprehensive protection measures to provide users with a high-quality product.
（二）BASIC CONFIGURATION：
|
|
Guide rail spacing |
3000mm |
|
|
Guide rail length |
6000mm |
|
|
Driving method |
Bilateral drive |
|
|
CNC system |
Shanghai Jiao Tong University 2300 System (Landscape) |
|
|
Console position (to be determined before ordering) |
Left operation |
|
|
CNC flame cutting torch |
1 |
|
|
CNC cutting torch moving body |
1 set [CNC] |
|
|
Horizontal and vertical pipeline transmission |
1 set of drag chains |
|
|
Electric control part |
Electrical cabinet (partially imported configuration) |
（三）function configuration：
|
|
Programming nesting software |
1 |
（四）TECHNICAL INDEX：
|
|
Available cutting width |
2200mm |
|
|
Available cutting length |
4000mm |
|
|
Air speed |
0-6000mm/min |
|
|
Flame cutting materials |
carbon steel |
|
|
Flame cutting thickness |
6-150mm |
|
|
Flame perforation cutting thickness (single cutting torch) |
[CNC]50mm |
|
|
Flame cutting speed |
50-750mm/min |
|
|
Plasma 200A cutting thickness |
0-20mm |
|
|
Cutting torch lifting distance |
≤180mm |
|
|
Whole machine accuracy standard |
Accord with JB/T5102-1999 |
|
|
Automatic lifting accuracy |
±0.2mm |
|
|
Linear positioning accuracy |
±0.2mm/10m |
|
|
Linear repetition accuracy |
±0.2mm/10m |
|
|
speed error |
±5% |
|
|
Cutting roughness |
Ra≤12.5μm |
（五）working condition：
|
|
ambient temperature |
-10℃～+40℃ |
||
|
|
relative humidity |
≤95% No condensation |
||
|
|
Surrounding environment |
Ventilation without significant impact |
||
|
|
supply voltage |
220V/3×380V±10V |
||
|
|
Power frequency |
50Hz |
||
|
|
Input power (local part) |
3-5KW |
||
|
|
Flame cutting gas (to be determined before pickup) |
Oxygen+acetylene or oxygen+propane |
||
|
|
Oxygen inlet pressure |
0.8-1.0ＭPa |
||
|
|
Gas inlet pressure |
0.04～0.06ＭPa 0.08～0.1ＭPa |
||
|
|
Oxygen purity |
More than 99.6% |
||
Subject list：
|
item |
Brand parts |
quantity |
pic |
|
CNC system |
Shanghai Jiao Tong University F2300 CNC system |
1set |
|
|
Arc voltage regulator |
Shanghai jiao tong university |
1set |
|
|
CNC cutting torch lifting device |
Luyuan CNC lead screw |
2set |
|
|
|
Reiss mixture |
1set |
|
|
motor drive |
2 |
||
|
|
1 |
||
|
|
2 |
||
|
Horizontal planetary gearbox |
Reducer |
Horizontal 1 set |
|
|
Longitudinal planetary gearbox |
Vertical 2 sets |
||
|
Programming nesting software |
StarCAM
|
1set |
|
|
solenoid valve |
CEME |
1set |
|
|
Main electrical components |
Taiwan Xinda Relay |
1set |
|
|
Horizontal drag chain |
Huiding |
1set |
|
|
Motor cable Servo cable |
Singapore Huayuan |
Each 1set |
|
|
Gas pipeline |
Korea SAM |
1set |
|
|
Guide rail system Guide rail rack Its accessories |
Standard 24KGguide rail Each set：2*2m/set |
3set |
|
|
Plasma cutting torch collision prevention Initial positioning |
GC-XPTHC |
1set |
|
