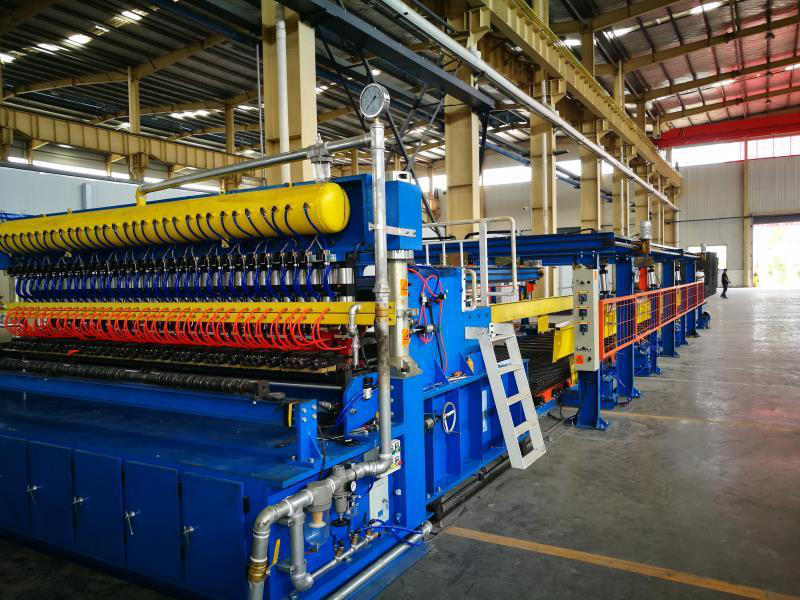

fully automatic cnc wire mesh welding machine luyuanmachinery

Main features:

1. The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. The machine operation is more intelligent and reasonable.

2. The control cabinet adopt touch screen and keyboard, you can change welding time and cross wire hole mesh size through touch screen. And has language in English.luyuanmachinery,trusty partner.

3. The cross wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop wires automatically. The store device has more capacity can load max 1.5tons rebar.

4.Adjustable distance of longitudinal wire that allows different opening size between the longitudinal wire, when input the distance of cross wire to computer, any mesh opening can be reach. Welding mesh hole size can adjust randomly within range.

5.Mesh pulling system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves precision of mesh opening size.luyuanmachinery focused on the cnc wire mesh welding machine more than ten years .

6.The wire mesh welding machine equips with 15 pieces of typical and efficient water-cooling welding transformers, 160KVA*15PCS (30 pcs of water cooling welding electrodes) ——every two welding electrodes need a water cooling welding transformer.

7. Low-voltage electrical appliances are made of Schneider, well-known brands to ensure the efficient and stable operation of the equipment.

8. The machine will stop working automatically if there is no cross wires in hopper device.

9. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

10. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

11. The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.

12. Wire feeding way:The longitudinal wires and cross wires should be pre-straightened and pre-cut. The longitudinal wires should be inserted into the slot tunnel by manual work or inserted into the wire feeding car first, then send by servo motor.

13. Automatic falling mesh and mesh conveyor device is adopted, so it save much labor to move the mesh panels.

Technical parameters (Model LYWM-3000A)

Wire diameter

5--12mm

Longitudinal wire type

pre-cut wire

Weft wire space

100--300mm

(adjustable)

Weft wire type

 pre-cut wire

Longitudinal wire space

100--250mm

(adjustable)

Rated voltage

 custom-made

 Mesh width

Max. 3m

 Welding Transformer

160KVA X 15PCS

Welding speed

50-- 70 times/min

Machine total dimension

27X 4.1X 2.1m(L*W*H)

Welding electrodes

30 PCS

Max. mesh length

6m

Total weight

14.5 T

 Main Motor

18.5 KW

Production Capacity

30-40 tons at 10 hours

Manpower

3 workers

Workshop space

35mx12m(L*W)

Falling mesh type

Automatic falling mesh

Power transformer

300KVA

Cable

240mm2*3pcs(Aluminium cable)

Electrical brake

630A

 Power consumption

20KW/Hour

Distance from power transformer to machine

150m

Tool kit

One
