automatic rebar cage welding workingstation
Product Description

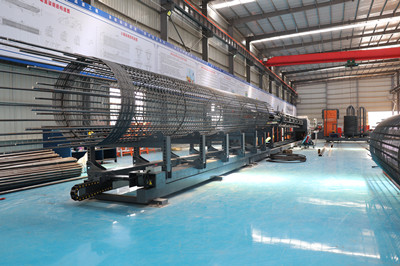

The fully automatic steel cage welding workstation is a steel cage
welding equipment with independent intellectual property rights
developed by our company. The equipment is mainly used in subways, bridges, building construction, airports, highways, and foundations.
This equipment consists of a main reinforcement automatic feeding
system, a main reinforcement detection and positioning welding
system, a steel cage welding system, and a steel cage unloading system. No human intervention is required during the welding process. The
welding efficiency is high. The welding time of a main reinforcement is less than 35 seconds. The welding time of the welding point can be
configured and saved according to the process, which saves personnel and greatly improves the welding efficiency. It can ensure continuous and rapid welding. The steel cage skeleton of 9 meters to 12 meters can generally be welded in 20 minutes, and the steel cage can generally be wound and welded in 25 minutes. The welding quality is good, there is no false welding, the quality is reliable, and the welding time and
welding position are accurately controlled to save welding materials.
The system supports the preset of multiple sets of steel cage
specification parameters. Workers can directly call data and use one-key operation on the touch screen during processing. The
assembly line working method is simple and intuitive, with a high
degree of automation. The product quality fully meets the specification requirements. When the steel cages are actually produced manually,
the project supervisor visits the processing site for inspection almost every day. However, after using the fully automatic welding
workstation for steel cages, all information equipment can
automatically monitor and record the welding process in real time, and report various monitoring information in a timely manner to ensure
stable and reliable processing quality. Product Features
This fully automatic steel cage welding workstation developed by our
company fully considers the safety, comfort, simplicity and
convenience of users. Taking into full consideration the operating
habits of workers on the construction site and the need to quickly get started with new products, the equipment operation has been specially optimized. After the equipment is debugged, all parameters that need to be input for later product type changes are intuitive and measurable (parameters that need to be set after product adjustment: steel cage
diameter, winding diameter, number of main bars, welding time, etc. are all input in a wizard-style manner, and the input data is checked for rationality, which greatly improves the accuracy and convenience of
the input data). At the same time, the system separates information
input, parameter setting permissions and equipment operation
permissions, and isolates system parameter settings, workpiece
processing specification information input, and worker processing
operations on the operation interface, which not only avoids the wrong modification of parameters, but also ensures the clarity and simplicity of the worker operation interface. During the period when the product specifications remain unchanged, the equipment can realize one-key
automatic operation, and the equipment will automatically perform all welding and testing work, and automatically stop and broadcast a
message to remind the workers when the welding is completed. The equipment is designed to work 24/7, which greatly improves
production efficiency and becomes a strong supporter of the project progress. During the normal welding process, no personnel need to
stay, so that the operator can carry out other preparation tasks.Reduce the labor intensity of workers. The extremely intelligent design of the product can greatly reduce the misoperation of personnel, and it takes only a few minutes to become familiar with the operation of the
equipment. Shandong Zhongji Luyuan Machinery Co., Ltd. insists on using technology to reshape the research and development concept of an industry. On the premise of ensuring the construction quality, it
simplifies the operation steps of personnel by improving the
intelligence of the product, and reduces the skill requirements of personnel to achieve the purpose of quality assurance, efficiency improvement and cost reduction for cooperative enterprises.
In particular, the product has the following characteristics:
1. Fast speed: The welding cycle time of each main reinforcement is less than 35 seconds.
2. Stable quality: Mechanized operation is not affected by human factors, and the quality can be stabilized for a long time.
3. It is suitable for the design requirements of the number, form, model, size and length of various main reinforcement stirrups, and will not
affect the design of the steel cage and the scattered mobile operations on the construction site due to the function of the equipment.
4. Convenient operation: The combined design makes the handling,
installation, production and other processes convenient, and adapts to the factory-based large-scale fixed production and the scattered mobile operations on the construction site.
5. Realize fully automatic welding of steel cages, improve work
efficiency, reduce manual work intensity, and improve the welding quality of steel cages.
