  • fully automatic rebar sawing machine 330

fully automatic rebar sawing machine 330

fully automatic rebar sawing machine 330
Inquiry Send Email

Description

1、 Overview of machine tool performance characteristics:

1) Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2) With PLC control system, one or more groups of data can be set for continuous cutting, and the single feeding accuracy is ± 0.2mm.

3) Color touch screen operation, intelligent human-machine interface, convenient operation, human-machine interface replaces the traditional button control panel.

4) The grating ruler is used to control the feeding length. The maximum single feeding stroke is 500mm. If the length exceeds 500mm, the feeding can be divided into several times.

5) PLC control, touch screen display.

6) Designed for continuous batch cutting, 34 wide saw blade is used, with high cutting accuracy and fast cutting speed

7) The steel brush type chip cleaning ensures that the sawdust is thoroughly cleaned.

8) The main transmission adopts worm gear reducer, which has strong power and reliable performance. It operates stably and reliably after precise balance correction.

9) Narrow sawing edge, material saving and energy saving.

10) The reasonable saw belt guide device effectively extends the service life of the saw belt. The movable saw blade guide device has stable structure and flexible movement. The transmission parts are adjusted to a precise balance, reducing vibration, and the descending speed is stable. This precision system can prevent the abnormal damage of the saw blade, and achieve the ideal sawing effect.

11) The circuit with high efficiency and energy saving design and excellent space of the electrical box not only ensure low failure rate of the machine, but also facilitate maintenance and save time;

12) In order to ensure the reliability of the machine operation, the saw blade, guide rail, electrical components and hydraulic components on the machine are high-quality products of well-known brands at home and abroad.

2、 Main technical parameters of machine tool

(1) Maximum sawing capacity: Ф 330mm          □330x330mm

Bundle sawing: 290W maximum × 140H min 220W × 90H (standard configuration)

(2) Main motor power: 5.0kw

(3) Hydraulic motor power: 0.75kw

(4) Pump motor power: 0.09kw

(5) Saw band speed: 40/60/80m/min

(6) Saw band specification: 4115x 34x 1.1 mm

(7) Saw belt tensioning mode: manual

(8) Overall dimension of machine tool: 1900mm × 1600mm × 1500mm (long × wide × High) (subject to the actual object)

(9) Net weight of machine tool: 1400kg

(10) Gross weight: 1680kg







3、 Function description of each part

1. Base: The base is welded with high-quality steel plates, and after vibration aging treatment, the welding deformation is small. It is mainly used to install various parts of the machine tool. At the same time, the rear end of the base is a water tank for circulating cooling during sawing.

2. Main drive: The main drive system of the machine tool consists of a motor, a reducer and a driving wheel. The reducer is directly connected with the driving wheel, and the drive is stable without impact. The rotating speed of the driving wheel can be adjusted by the tower wheel to obtain three kinds of rotating speeds to meet the sawing of materials of different specifications.

3. Clamping device: hydraulic clamping is adopted for the clamping of the machine tool, and a set of clamping vises are respectively set on the back side of the saw band and the feeding mechanism. The position of the clamp at the back side of the saw blade is fixed, which is responsible for tightening and fixing the workpiece during sawing; The clamp on the feeding mechanism is responsible for tightening and fixing the workpiece during feeding, and handling the certificate of feeding accuracy.

4. Saw frame: The saw frame is a bow structure, which is divided into left and right saw frame boxes. The saw frame plate is made of high-quality steel plates, which are assembled and welded by reasonable stiffeners. After vibration aging, the welding stress is redistributed and eliminated, thus ensuring the stability of the saw frame. The main transmission device, driving wheel, tensioning wheel, guide device and saw blade tensioning device are all installed on the saw frame. When the machine tool is working, the saw wheel rotates counterclockwise.

5. Guide device: The guide of the machine tool is divided into movable guide arm and fixed guide arm. The movable guide arm is moved manually. After adjustment, the guide arm shall be locked manually. The outside of the guide seat is equipped with bearing pre guide, and the top and side of the guide seat are made of hard alloy to ensure the stability of the guide and prolong the service life of the saw blade.

6. Saw blade tensioning device: the tensioning wheel is installed at the left end of the saw frame. After the band saw blade is installed into the driving wheel and tensioning wheel, the saw blade tensioning mechanism is controlled by a manual valve to tension or loosen the saw band. The tension is adjustable.

7. Cooling system: In order to prolong the service life of the saw blade, prevent the saw blade from heating, and ensure the sawing accuracy, the machine tool uses a cooling pump for centralized cooling. The cooling points are divided into upper and lower guide seats. The coolant is recycled, and the coolant is saponified liquid. The automatic chip sweeping device adopts the way that the steel wire barbed wheel rotates with the saw blade, which can effectively clean the iron chips stuck to the saw blade without damaging the tooth tip and affecting the life of the saw blade.

8. The hydraulic system of the hydraulic system is composed of an independent hydraulic station, mainly including one oil tank, one hydraulic motor, one oil pump, one speed regulating valve, several solenoid valves, etc.

9. Electrical control system This machine tool is designed with a separate electrical control cabinet. All electrical components are installed in the electrical cabinet. To ensure safety, interlocks are set between actions

The automatic feeding mechanism is composed of a bed, a roller, a vise, a grating ruler, etc. The hydraulic vise is installed on the machine bed. The hydraulic vise holds the workpiece, the grating ruler, and the oil cylinder drive the feeding bed to move to realize feeding.

Inquiry Us





Related Products

REBAR WIRE MESH WELDING MACHINE LYWM-3500

REBAR WIRE MESH WELDING MACHINE LYWM-3500

cnc round steel threading machine

cnc round steel threading machine

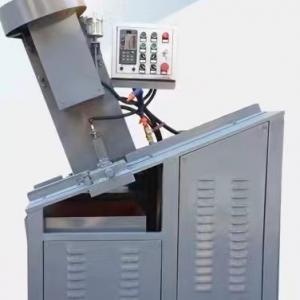

one  head rebar coupler making machine
