​Rebar bending center operation process


Rebar bending center operation process: PLC adopts German Siemens, the signal is unobstructed, the feedback is accurate, the encoder and servo motor adopt the brand, the number of lines is high, the signal feedback is accurate, and the steel bending angle is accurate, and other components adopt domestic brand Chint Electric.
 The CNC steel bar bending center has the function of simultaneous two-way bending in one working cycle. The two bending hosts can work independently or at the same time. Only one clamping is required, which greatly improves production efficiency and reduces labor intensity.  It is widely used in the steel bar processing of bridge construction and other projects.

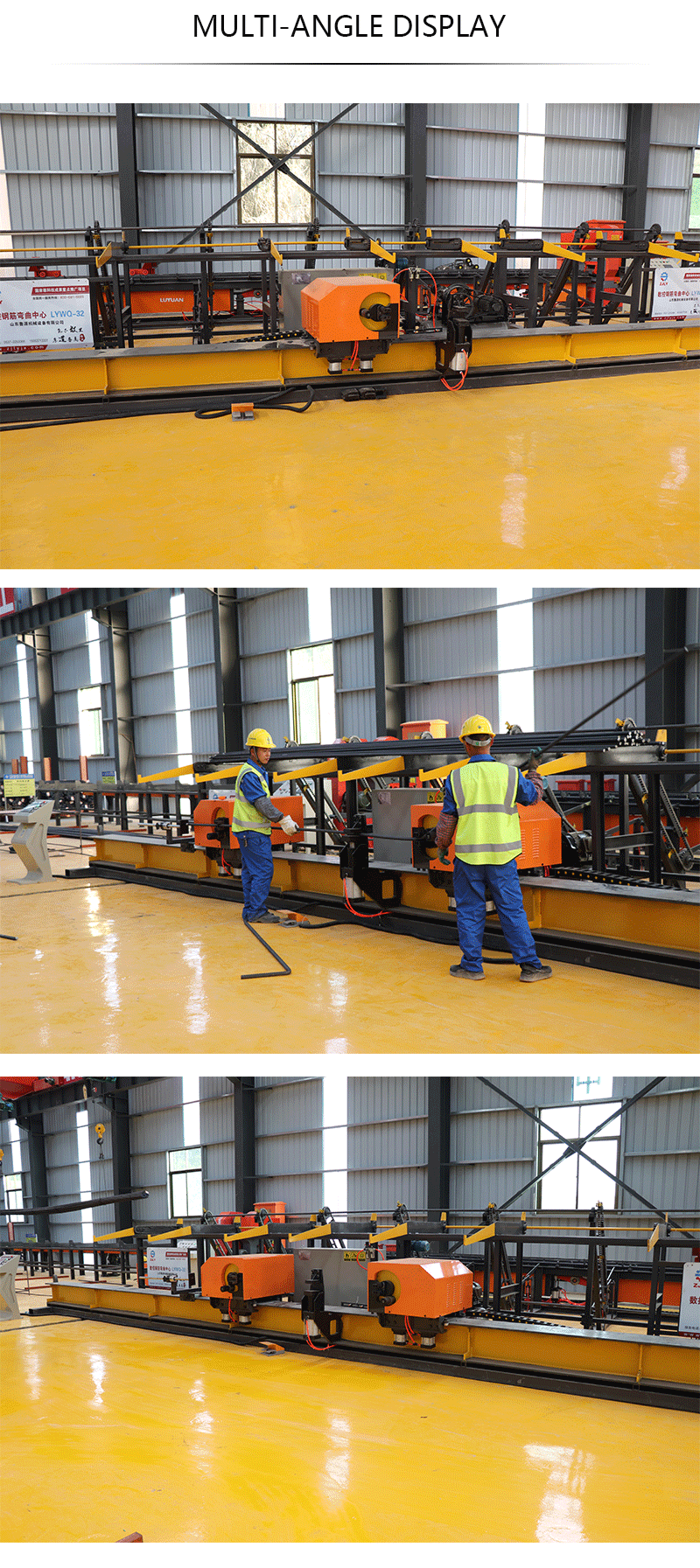

      LUYUAN LYWQ-32 CNC Rebar Bending Center This equipment has professional equipment for automatic bending of 12-32mm straight steel bars for construction.  The two-way bending function can be performed at the same time in a working cycle. The two bending hosts can work independently or at the same time. Only one clamping is required, which greatly improves production efficiency and reduces labor intensity.  It is widely used in the steel bar processing of bridge construction and other projects.
 Product features of steel bar bending center:
 Intelligent operation and modular input are not required for the quality of operators.
 The processing length and angle adjustment are simple and easy.
 Servo PLC control, computer programming, can store hundreds of graphics.
 Two-way CNC moving and bending, and independent movement of a single machine head.
 The production efficiency is high. The average daily processing capacity is 5500 pieces per person, which can replace 22 workers and is more than 10 times the output of traditional processing equipment, reducing labor costs.
 The finished product has small processing error and low material loss.  Reduce material costs.

 The rack-and-pinion mobile structure has low noise and easy maintenance.

 Description of the advantages of steel bending center design:
 1. The bending die and the bending machine head are made of integral steel casting process, which has good integrity and sufficient rigidity.
 2. The traveling of the steel bending machine head adopts the servo motor to drive the rack and pinion, which has fast response speed and stable and accurate traveling.
 3. Set up a mobile sizing mechanism, accurate positioning, convenient and fast adjustment
 4. Adopt the cylinder drive equipment intermediate clamp to compress the steel bars, and the steel bars are positioned firmly and accurately to ensure the bending accuracy
 5. The middle steel bar clamp adopts flexible clamping, which ensures that each steel bar is clamped when multiple steel bars are bent.
 6. Servo-driven brakes are used to ensure large braking force to ensure that the position of the machine head will not be displaced when the steel bars are bent.
 7. Imported PLC combined with touch screen control interface, easy to operate.
 8. High-strength moving track, durable.
 9. The telescopic bending shaft realizes the two-way bending of the steel bar with high efficiency.
 10. The lubricating oil adopts a centralized oil supply system, which avoids the drawbacks of separate oil injection for key parts.

 11. The raw materials of the whole machine are shot blasting, sand blasting, primer and top coating processes through large shot blasting machine equipment, which greatly extends the service life of the equipment。
