  • Flat Steel Rolling Leveling Cross cutting Unit

Flat Steel Rolling Leveling Cross cutting Unit

Flat Steel Rolling Leveling Cross cutting Unit
Inquiry Send Email

Description

6x80mm Flat Steel Rolling Leveling Cross cutting Unit

1、 Equipment technical data

Specifications

a. Applicable materials: hot and cold coiled plate.

b. Material quality: domestic authentic steel or international standard steel

c. Tensile strength: δ b≤450Mpa, δ S≤260Mpa,

d. Material thickness: 2-6mm

e. Material width: 20-80mm (Max)

f. Inner hole of steel coil: φ 508mm

g. Steel coil weight: 2000Kg (Max)

Finished product parameters:

a. Width b (mm): 20-80;

b. Width accuracy:+0.3~-0.9mm;

c. Fixed length L: 1-6m;

d. Sizing accuracy: ± 2mm/m;

Other equipment parameters:

Process line speed of production line: 0-25m/min;

Production mode: continuous production;

Direction of production line: from right to left (the console faces the unit)

Production operators: 1 technician, 1 general worker

Equipment color: blue

2、 Composition of production line equipment

Material placing rack

Seven roll primary straightening

Chamfer extruder

Two roll pinch machine

Longitudinal straightening machine

Plane straightening machine

Hydraulic tracking cutting machine

Fixed length receiving table

Electric control system

3、 Brief description of unit equipment

Material release rack: mechanical expansion and contraction uncoiler, with expansion and contraction range set for the reel φ 460-520, set a stopper foot to prevent the steel coil from scattering. In addition, the brake device can control the uncoiling tension, eliminate the inertia basis and eliminate the possibility of spring like dispersion.

Seven roll initial straightening: 2-roll pinch and 5-roll leveling. 2-roll pinch can eliminate the burrs after partial slitting. The feed inlet is equipped with a well shaped guide device. 5-roll initial leveling adjusts the plate head after slitting to facilitate feeding. Roller diameter φ 95. There is no power roll. Both ends of the leveling roll are supported by rolling bearings. The width of the roll surface is 100mm.

Chamfering extruder: 10 vertical rollers are used for top extrusion in 5 groups to extrude the longitudinal rough edges and right angles of the sheet metal, so as to make the sharp edges of the strip steel into small blunt edges, realize the edge forming of the flat steel, and improve the quality and grade. Two roll pressing devices are set in the middle to stabilize the production and operation of sheet metal and improve the forming effect.

Two roll pinch machine: it is equipped with power transmission. It uses the same power as the leveling host machine. The transmission ratio is reasonably set to achieve synchronous speed. A gear distribution box is set. The diameter of the two rolls is 190 and the width of the roll surface is 100 mm. It plays the role of pinch and polishing the surface.

Longitudinal straightening machine: 7 vertical rollers are used to straighten the longitudinal bending of sheet metal.

Plane straightening machine: set 22Kw frequency conversion control speed regulating motor, configure reducer, set 2-roll pinch and 11 roll straightness, and set the straightness with steel flatness; The motor adopts frequency conversion control, which is more conducive to cost saving, and the speed and length are more reliable. Encoding device is installed at the outlet to achieve accurate length cutting.

Hydraulic cutting machine: one hydraulic plate shear is used for fixed length cutting of flat steel. Supporting hydraulic station.

Receiving table: set 6M receiving rack

Xinjie PLC control system and servo motor ensure smooth operation and more accurate shearing of equipment.

Inquiry Us





Related Products

cnc rebar steel mesh welding machine LYMW-2500

cnc rebar steel mesh welding machine LYMW-2500

cnc automatic wall-mounted threading machine pipe threader

cnc automatic wall-mounted threading machine pipe threader

luyuan wire mesh welding machine LYLG300T-10

luyuan wire mesh welding machine LYLG300T-10

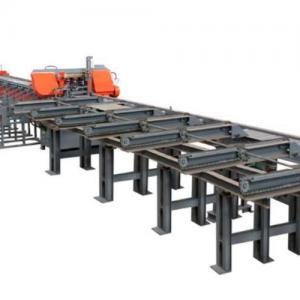

rebar shear line

rebar shear line

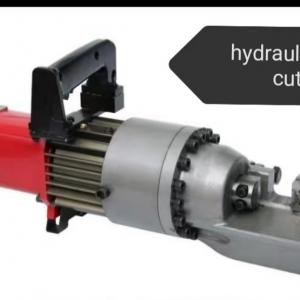

small rebar cutting machine
